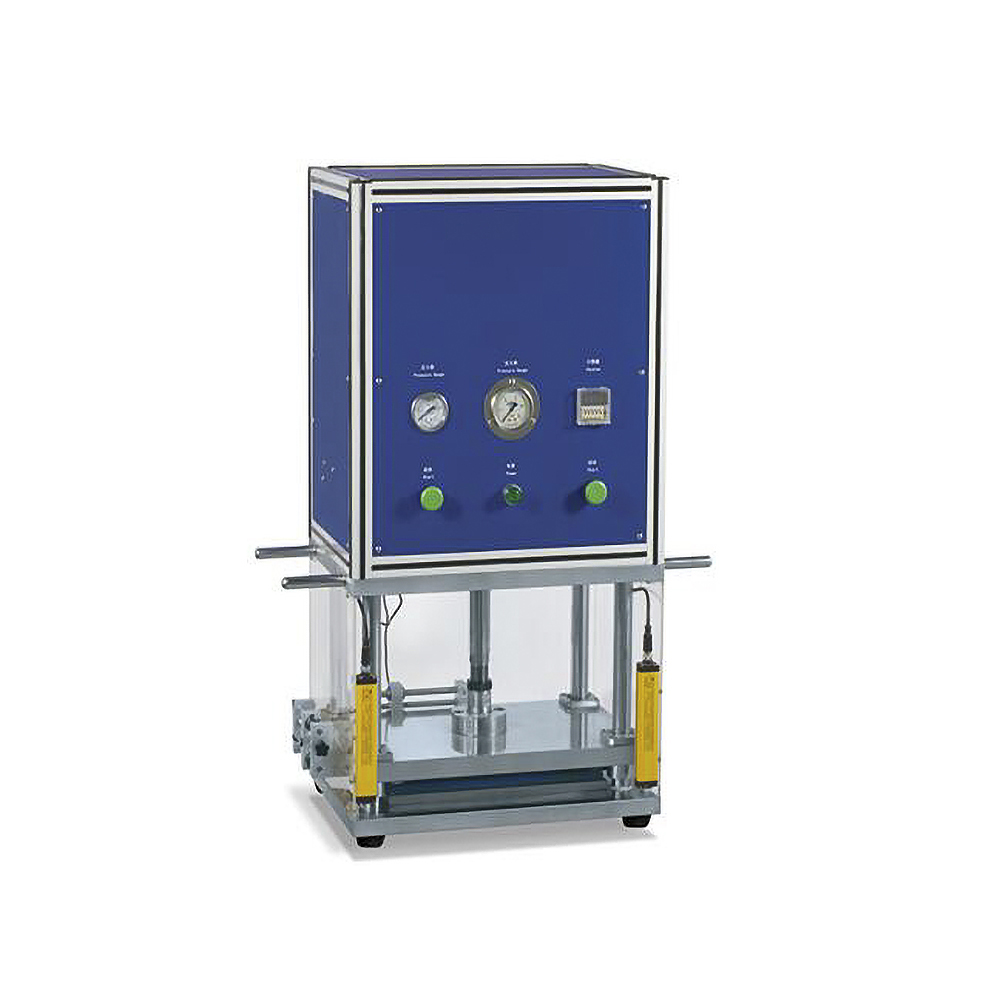

Quality Semi Automatic Pouch Cell Battery Electrode Die Cutting Machines


* Dimensions: L580*W455*H900mm

* Equipment weight: 180kg

Please contact [email protected] to get the delivery charge of the product.

$3,800.00 $5,800.00

Compare

Features

Replacement of die cutter is convenient, quick, consumable (die cutter is life about 30000 times);

Manual and continuous feeding, automatic discharging, and can automatically separate waste;

No quality defects such as burrs, off powder, indentation;

Between manual and automatic, high efficiency, 800-2000 / per hour;

Simple operation, safe and reliable, beautiful appearance, small size.

Specification

1 Semi-automatic electrode die cutter is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.

2 This Semi Automatic Die Cutter machine adopts Safety Curtain built in the front of the machine and double start button ensures operation safety when electrode sheets are fed from the front.

3 High speed, high accuracy, long lifetime to make ready electrode without burr, to get a good consistency.

4 This model has max die dimension with 300*300mm, if you have large size requirement, please contact us for more information.
