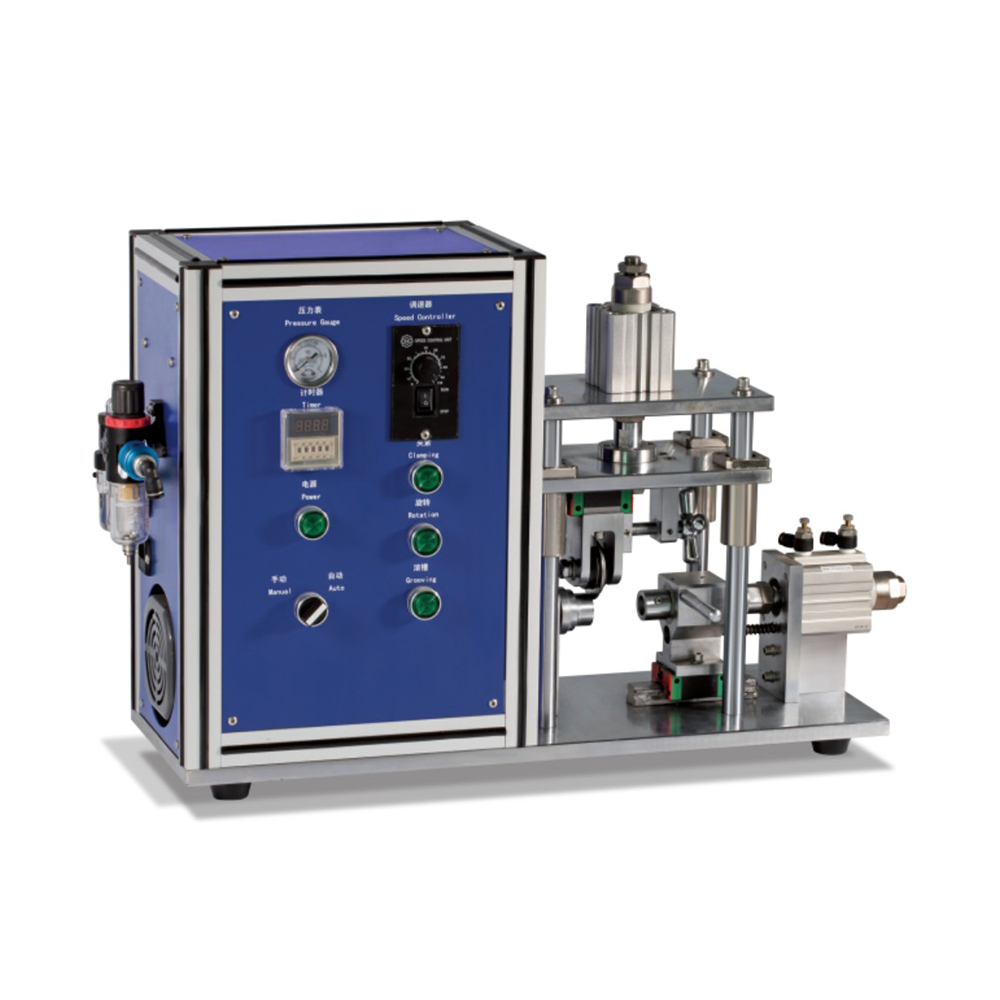

Quality Semi-automatic Cylindrical Battery Roll Groove Machine


Compare

Description:

It is suitable for uniform and automatic rolling grooves of cylindrical steel shells (or capacitor aluminum shells) equipped with batteries. The replacement of rolling groove molds can be applied to the production of cylindrical batteries of various specifications.

Feature:

*The rolling groove size is adjustable, with high precision and stable size.

*It can process various rolling grooves of cylindrical batteries.

*The machine is small in size, exquisite and beautiful in appearance, and easy to operate.

Technical Parameters:

* Roll groove depth: 1.2~2.0mm (adjustable)

*Rolling groove width: 1.1~1.5mm (according to the thickness of the hob)

*Processing accuracy: ±0.1mm

*Hob life:> 1 million times

*Capacity: Semi-automatic 400 EA/H

*Configuration power supply: 220v/50Hz, 110V/60Hz

*Power 140W

*Compressed air: 0.5MPa~0.7MPa

*Suitable for various steel shell cylindrical battery roll grooves such as 18650, 26650.21700…

*Suitable for aluminum shell capacitor rolling groove within Φ30

*Dimensions: 820mm X 255mm X 510mm

*Weight: 80kg.
