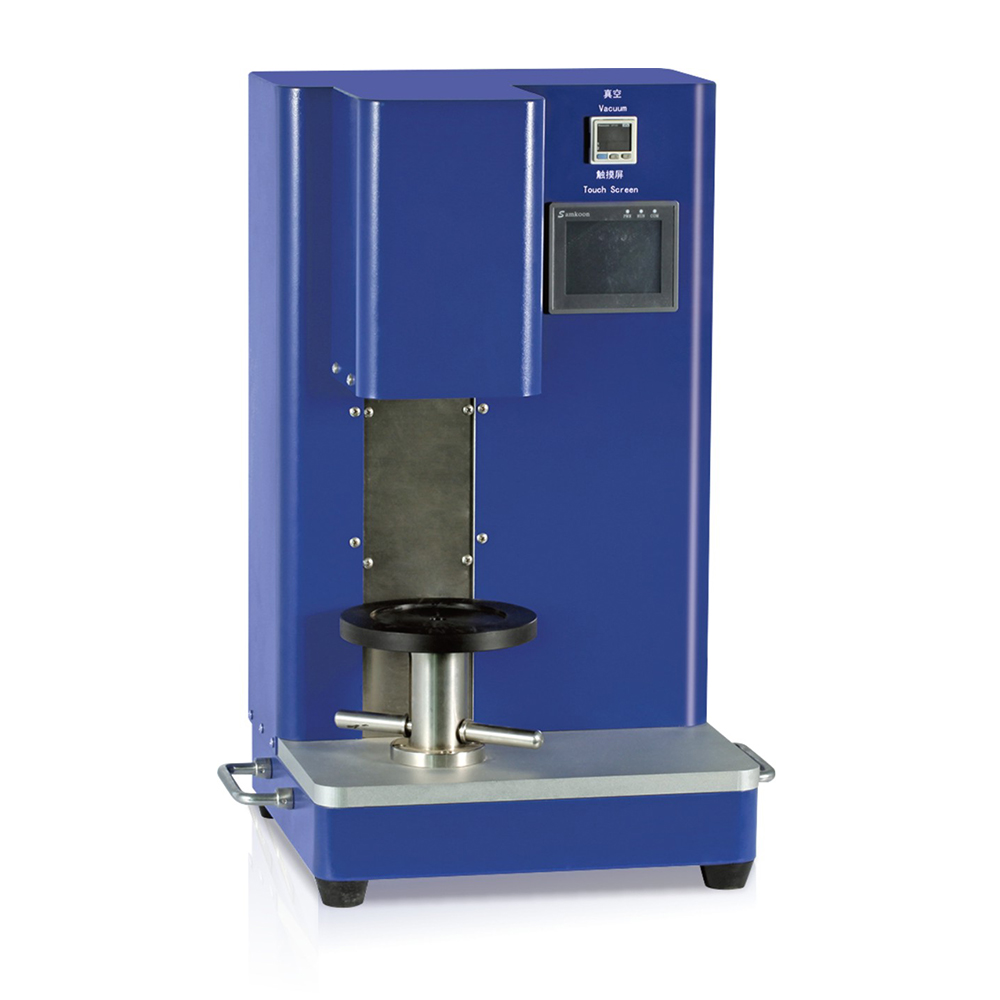

Quality Laboratory Small Planetary Vacuum Mixer Machine


Net weight: about 35kg;

Product diamension: about 330m*320mm*570mm



$1,699.00 $2,599.00

Compare

Description:

Small planetary vacuum mixer machine is a high-efficiency equipment with vacuum and dispersion function, It is suitable for the battery lab research during anode and cathode electrode slurry mix, as well as the mixing of powder materials and various ceramics. Since the stirring is completed in a vacuum state, no air bubbles are completely realized, so the filling of the material and the compactness of the model are improved.

Feature:

1. Designed the positive and negative stirring function, which can achieve high speed mixing of higher viscosity slurry, good mixing uniformity.
2.Vacuum environment, effectively remove the bubbles generated by the mixing process, the machine comes with a vacuum system.
3.Multi-speed operation, set the stirring speed and time of each section.
4. The equipment comes standard with a two-axis planetary stirring structure, agitator mixing paddles, and different mixing shaft forms and combinations according to the size of the mixing tank.
5.Bracket design for easy operation and safety during vacuum mixing process.
6. Exquisite appearance, three-dimensional geometric design, simple and beautiful.
7. Small size, can save space.

Specification:

Mixing rotate speed MAX600 turns/min
Multi segment function Three segment can be set
Accessories volume 500ml stainless steel vacuum mixing tank, or other specifications
Mixing time 0~600min, it can be set
Voltage AC220V/110V
Rated power 200W
Dimension about 330m*320mm*570mm(L×W×H)
Machine weight about 35kg

Standard twin-shaft screw agitating paddle, others are designed according to the tank.
Built-in vacuum pump, vacuum degree -0.08Mpa.
