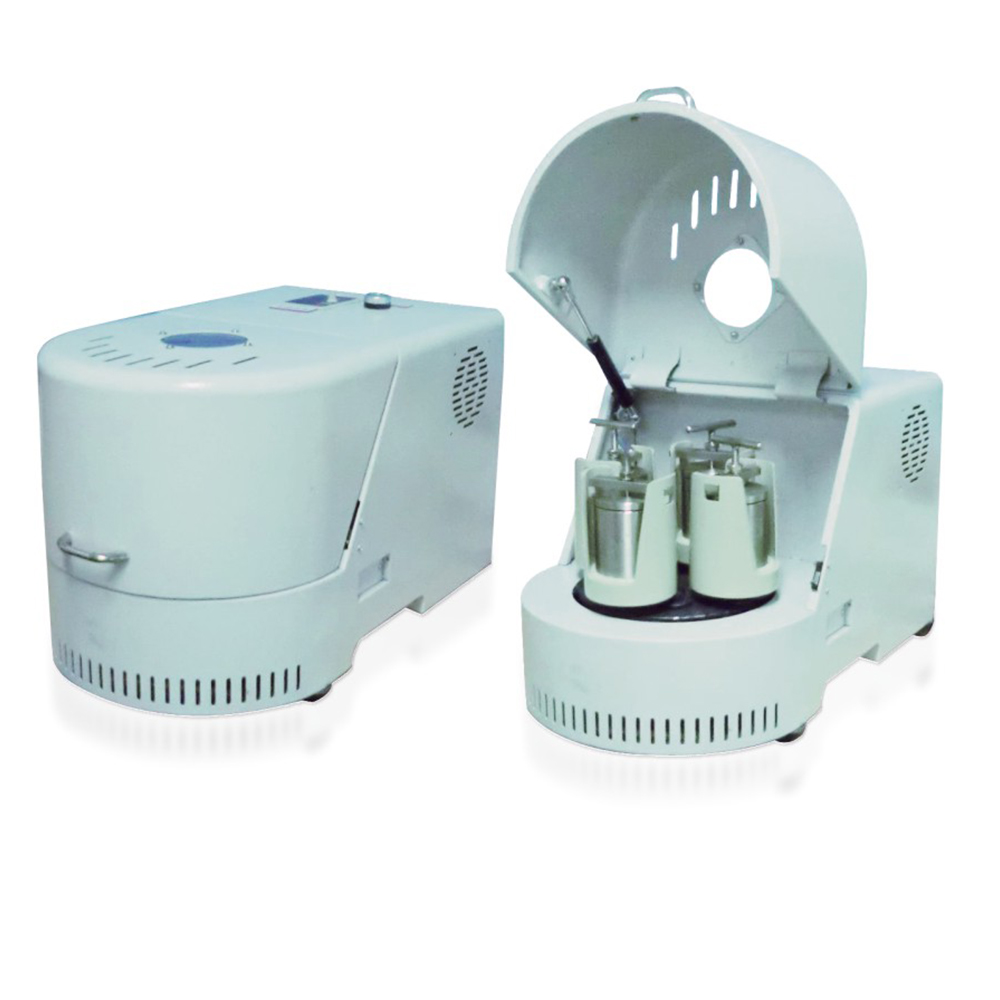

Quality Laboratory Planetary Ball Mill Machine for Battery Materials Grinding
Dimensions: 450×700×550mm;
Weight:41kg;
Please contact [email protected] to get the delivery charge of the product.
$2,899.00 $3,999.00
Description:
Oil seal mute planetary ball mill is a necessary device for mixing,fine grinding,small samples prepared,dispersion of nanometer, R&D of new product and small batch production for high tech materials.
Feature:
1. The ball milling tank adopts planetary motion, with high ball milling efficiency and fine particle size.
2. Frequency conversion control, the ideal speed can be selected according to the test results.
3. The inverter has undervoltage and overcurrent protection, which can provide some necessary protections to the motor.
4. The whole unit has timing shutdown, automatic timing forward and reverse functions, and can freely choose one-way, alternate, continuous, timing and irregular operation modes as needed to improve grinding efficiency.
Specifications:
| Ball milling tank volume | 100mL, 250mL, 500mL |
| Milling tank materials | stainless steel, nylon, corundum ceramic, zirconia, etc |
| Ball mill medium material | stainless steel, agate, nylon, corundum ceramic, zirconia, etc |
| Max charge of tank | No more 2/3 of the volume |
| Filling materials size | Crispy material is less than 10 mm, other less than 3 mm |
| Output material size | Min 0.1um |
| Rotation speed | Revolution speed 0-400r/min,Rotation speed 0-800 r/min |
| Speed ratio | (Revolution : Rotation) 1:2 |
| Speed regulation method | brand inverter stepless speed regulation, speed accuracy 0.2 rpm |
| Working mode | two or four tanks work at the same time |
| Max continuous working time | 72 hours(timer 0-9999h) |
| Working voltage | 220V/110V |
| Motor power and frequency conversion power | 0.75kw |
| Dimension | 450×700×550mm |
