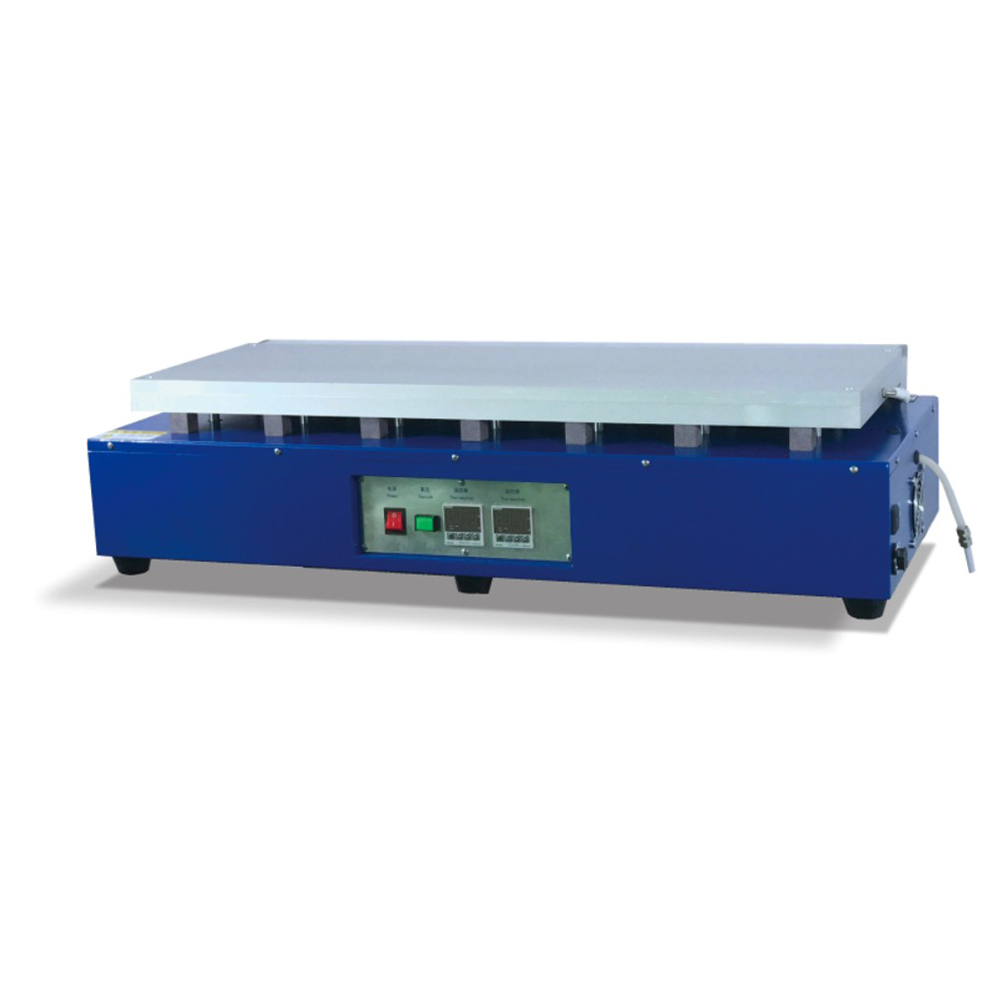

Quality Laboratory Heat Flat Film Coater Coating Machine


Compare

Description:

Laboratory heat flat film coater coating machine is widely used in various high-temperature coating research, such as ceramic films, crystal films, battery material films, and special nano-films; they can adapt to the development of science and technology for film formation under high temperature conditions in the future.

Feature:

1. Use bottom heating to dry.
2. Coating speed can be regulated at a range of 0~100mm/s.
3. Temperature controlled drying system is digital displayed.
4. Stroke can be adjusted by the stroke switch at a range of 10~250mm.
5. Vacuum aluminum plate used to place and take off the substrate quickly.
6. With adjustable film applicator.

Specification:

Coating Speed  0~100mm/s
Max Stroke  250mm
Vacuum plate  Equipped with vacuum aluminum plate
Dimension of vacuum plate  L365mm×W200mm×H30mm
Regulating range of scrapper  0.01~3.5mm
Power supply  220V/50Hz
Weight  50KG
Dimension  L500mm×W310mm×H260mm

Use bottom heating to dry, MAX120℃.
