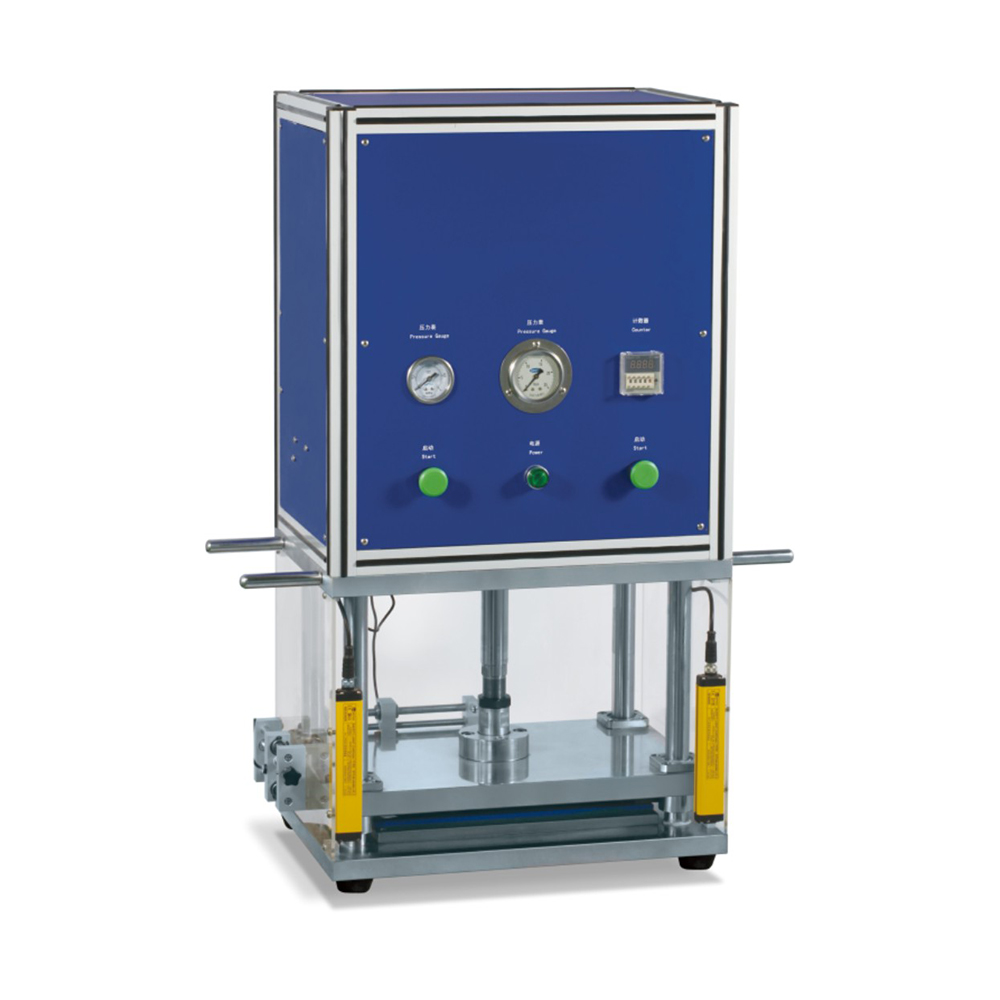

Quality Lab Semi-Automatic Pouch Cell Battery Electrode Die Cutting Machine


Compare

Description:

Semi-automatic die-cutting machine is an equipment used for die-cutting positive and negative plates of lithium battery laminates. The equipment uses a pressurized cylinder to punch single-piece or coiled pole pieces, and can provide various shapes of knife dies according to customer requirements to realize the forming and die-cutting of battery pole pieces of different sizes.

Feature:

*Using infrared positioning device, accurate and convenient pole piece positioning die-cutting;

*It is convenient and quick to change the knife mold;

* Long tool life, normal use ≥ 30,000 times;

* There are no quality defects such as burrs, powder falling, and indentation;

*Between manual and fully automatic, high efficiency 800~2000 pieces/hour;

(According to the size of the die-cut pole piece, 1-8 pieces can be punched each time, the standard is 2 pieces)

*Using four guide pillar structure, sliding up and down smoothly and high precision;

*The equipment inlet has a safety protection light curtain, which makes the operation very safe;

*Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;

*Easy to operate, safe and reliable, small size

Technical parameter:

*Using infrared positioning device, accurate and convenient pole piece positioning die cutting

*Vertical burr≤15μm, horizontal burr≤20μm;

* Long tool life, normal use ≥ 30,000 times

*Punching size: 280x180mm (can be customized according to customer requirements)

*Punching accuracy: ±0.1 mm

*Booster cylinder: 3T

*Die cutting stroke: 150mm

*Pneumatic-liquid pressurized cylinder driven, punching force and punching speed are adjustable

*Capacity: 800~2000EA/H (sheet die cutting efficiency is slightly lower)

*With safety protection light curtain

*Power supply: 220V/50Hz, 110V/60Hz

*Power: 100W

*Compressed air: 0.5Mpa~0.8 Mpa

*Dimensions: L590xW415xH900mm

*Equipment weight: 190
