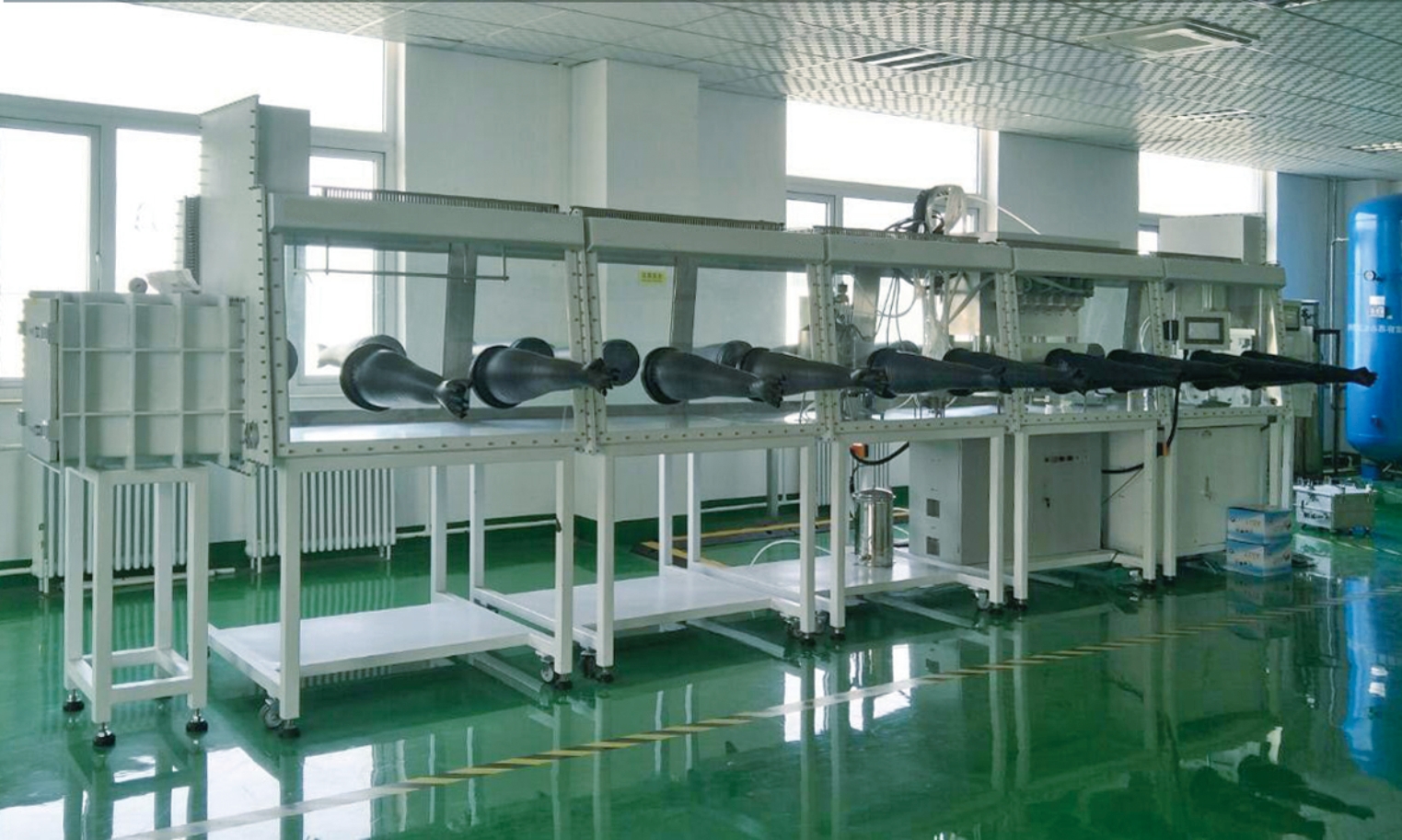

Quality Glove Box Automatic Purification System


Compare

Description:

The glove box is a kind of equipment that provides an anhydrous and oxygen-free environment. The equipment is mainly composed of a display system, a transition chamber, a vacuum system, a control system, a cabinet, a circulating purification and regeneration system, etc., and it can also be combined with a gas purification system, Solvent filtration system, water and oxygen display system integration work. The box body is made of high-quality steel plate or mirror stainless steel argon arc welding, and double-layer tempered glass. Beautiful and novel, stable performance.

Feature:

The automatic function can control the air pressure, detect, purify and restore.
Touch screen: color Chinese and English operation interface, easy to enter various functions, realize man-machine dialogue.
Circulation: closed loop gas circulation, no oil and vacuum.
Air pressure control: automatic control, working air pressure can be set in the range +/- 12mbar.
Cabinet cleaning: automatic control, easy to operate, save gas, and safe to handle solvents.
Foot switch: The air pressure in the box can be adjusted by the foot switch.
Configure internationally renowned brand components.
Excellent sealing performance and easy replacement.
Automatic control system: PLC program control system is adopted.

Specification:

Closed box: SUS304 stainless steel plate, single section L1200*W1050*H900mm, thickness 3mm
Transition cabin: SUS304 stainless steel type, thickness 3mm, square 450*450mm, length 600mm
Purification system: SUS304 stainless steel, renewable purification material
Circulation pipe: SUS304 stainless steel, KF40 pipe
Glove mouth: hard aluminum alloy
Lighting: Fluorescent lights on the front window
Pressure control: PLC automatic control, working pressure can be set at ±12mbar
Adsorption device: SUS304 stainless steel plate, can be renewed and filled with purification materials, water and oxygen are controlled at Circulation: oil-free and vacuum, microprocessor control, pressure-tested stainless steel device
Regeneration: automatic regeneration program
Working gas: nitrogen, argon, helium
Regeneration gas: working gas/H2 mixture, 5-10% hydrogen
Vacuum pump: choose the original vacuum pump with a flow rate of 8m³/h
Power supply: AC220V/50HZ, AC110V/60Hz
