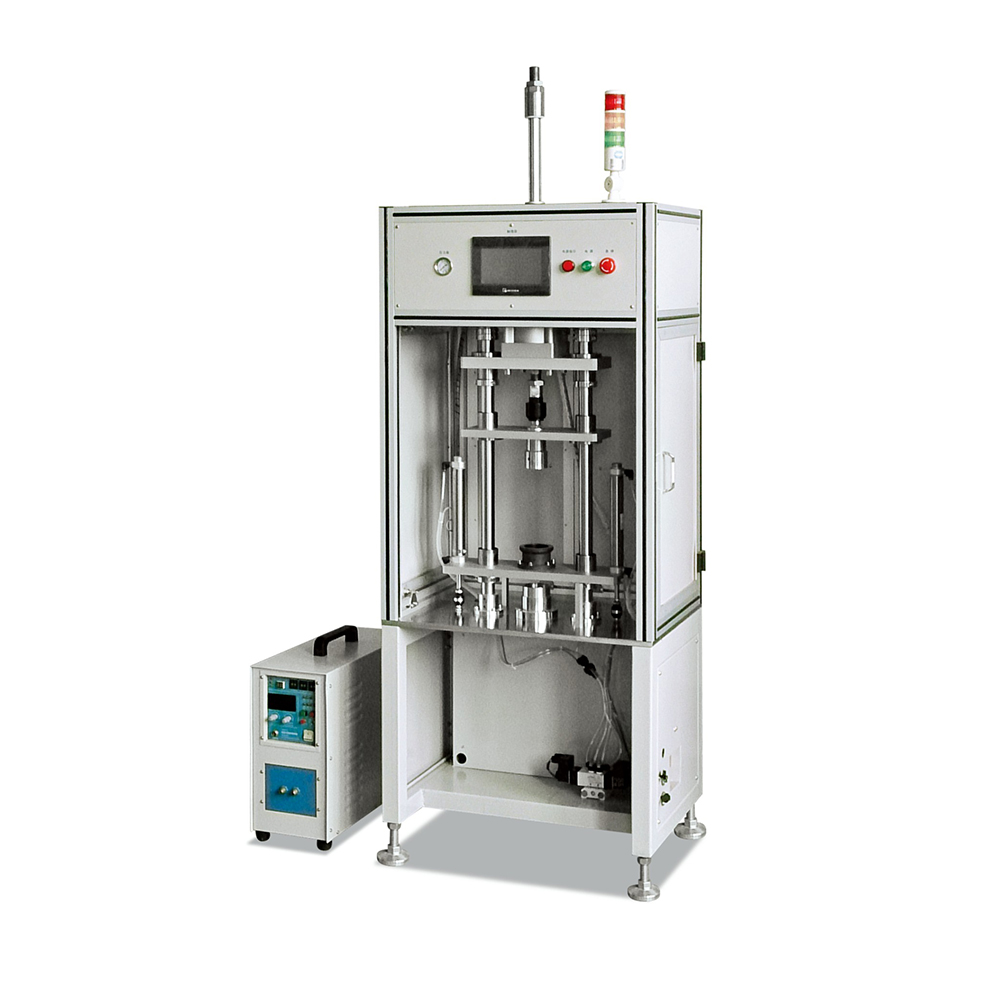

Quality Cell Automatic Heating Into The Shell Machine


Compare

Product name: Battery automatic heating shell machine      battery automatic shell machine

Feature:

*The positive end of the outer shell is heated by high frequency, which makes the positive current collector sheet and the battery core with positive tolerance fit to be pressed into place.

*Using the tapered sleeve form to slowly shrink the volume of the sealing ring and press it into the shell, the O-ring is less stressed and has no damage.

*The surface of the taper sleeve is extremely smooth with special materials, which greatly reduces the friction of the O-ring and prevents damage.

*High-frequency heating temperature, adjustable time.

*Using high-precision guide post and guide sleeve to guide, the size of the shell is stable.

*The height of the super capacitor can be adjusted to suit different height products.

*Product counting function, easy to see the processing quantity.

*Using light curtain electronic protection, safe and reliable to use.

*The appearance is geometric design, exquisite and beautiful.

Technical parameter:

*Suitable for cylindrical super capacitor products;

*The depth of the shell can be adjusted.

*Into the shell speed: 50mm/s speed can be adjusted;

*Service life: The normal service life of the tooling and mould needs to reach more than 500,000 times.

* Heating temperature: the shell reaches about 200 degrees, the temperature can be adjusted.

*Capacity: ≥3PCS;

*Utilization rate: 98%;

*Air source: 0.5~0.8MPa adjustable;

*Power supply: 380V/50HZ, 110V/60HZ;

*Input power: 25KW

*Cooling water requirement: 0.2Mpa, 4~6 L/min

*Dimensions: L800mm*W 600mm * 1600mm;

*Weight: 300kg;
