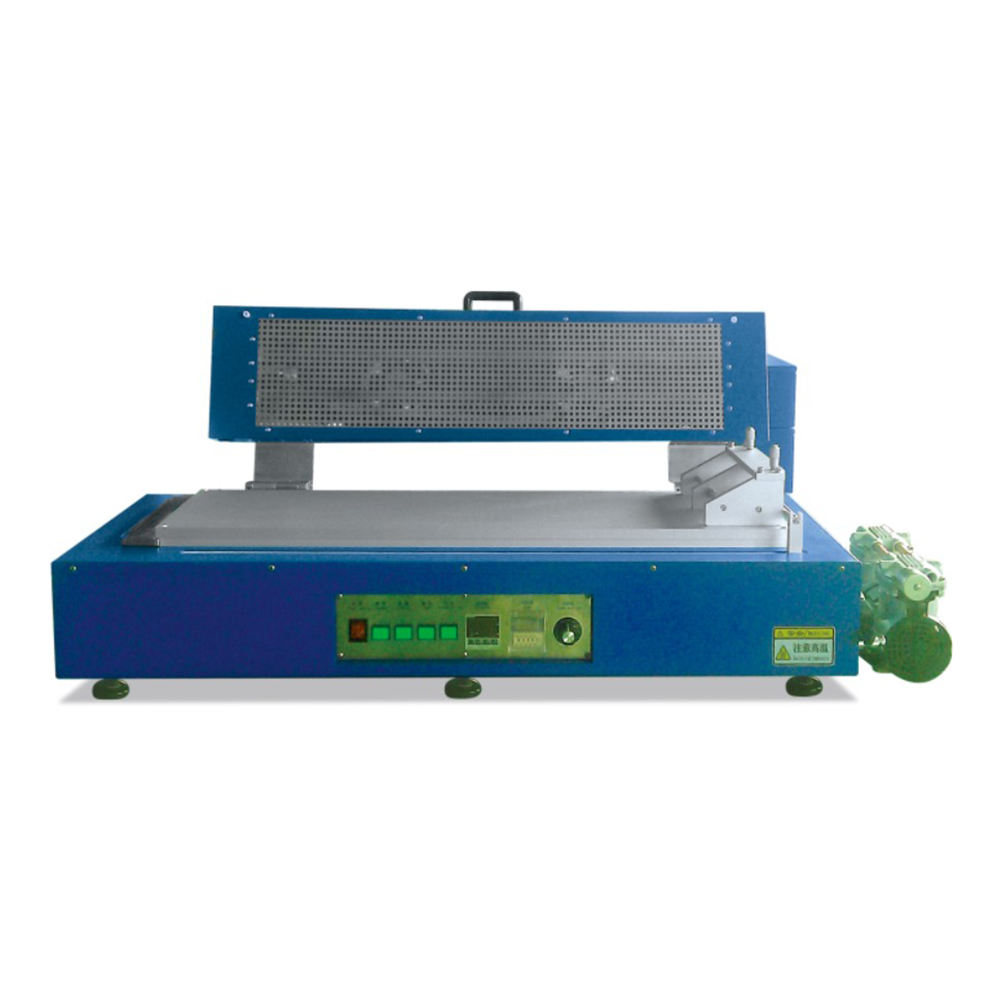

Quality Automatic Film Coating Machine with Dryer 800mm
Compare
Description:
Automatic film coating machine with dryer is widely used in various high-temperature coating research, such as ceramic films, crystal films, 18650 battery material films, and special nano-films; they can adapt to the development of science and technology for film formation under high temperature conditions in the future.
Feature:
1. Coating speed can be regulated at a range of 0~100mm/s.
2. Temperature controlled drying system is digital displayed, max working temperature 150℃.
3. Stroke can be adjusted by the stroke switch at a range of 10~800mm.
4. Vacuum aluminum plate used to place and take off the substrate quickly.
5. With adjustable film applicator.
Specification:
| Coating Speed | 0～100mm/s |
| Max Stroke | 800mm |
| Vacuum plate | Equipped with vacuum aluminum plate |
| Dimension of vacuum plate | L865mm×W200mm×H30mm |
| Regulating range of scrapper | 0.01～3.5mm |
| Heating drying system | Room temperature～150℃, digital display temperature controller, accuracy±1℃ |
| Power supply | 220V/50Hz, 110V/60Hz |
| Weight | 100KG |
| Dimension | L900mm×W310mm×H330mm |
Equipped with heating and drying system.
