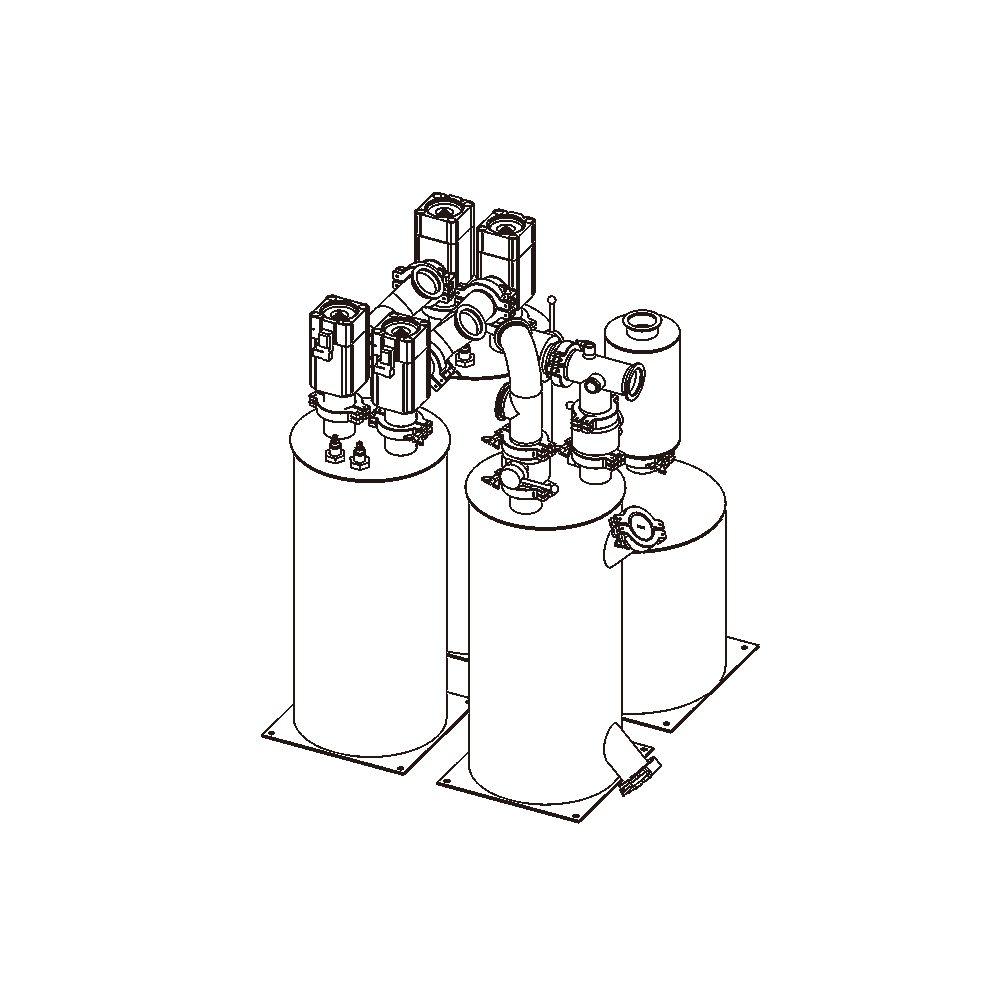

Glove Box Use Double Column Gas Purification


Gas circulation: Closed loop gas recirculation

Removal of H2O and O2

Inert gas: Nitrogen and Argon

H2O < 1 ppm, O2 < 1 ppm

$9,000.00 $10,200.00

Compare

Process

Gas circulation: Closed loop gas recirculation

Gas Purification System

Removal of H2O and O2

Working Gas

Inert gas: Nitrogen and Argon

Attainable Purity

H2O < 1 ppm, O2 < 1 ppm

Purifier

Amount/type:Double  H2O/O2 purifier column

Capacity: Oxygen removal: 30 l (standard conditions), Moisture removal: 1600 g

Lindy Molecular Sieve,and BASF R3-11 Copper Catalyst.

Purification Columns Include Fill & Empty Ports for Easy Catalyst Replacement

Material: Stainless Steel type 1.4301 (US type 304)

Heater: Integrated

Circulation Unit

Type: Integrated blower   vacuum-tight, oil-free

Flow rate: 100 m³/h (120 cfm) at ΔP = 60 mbar (60 Hz)

Features: Operated with all standard power supplies; optimum system tuning by frequency preselection for the blower

Valves

Main valves: Stainless  DN 40 Valves

Control valves:  magnetic valve system, DN 6/10 (Brass)

Piping

Main piping: Stainless pipe DN 40 KF-flange system*

Control pipework: Copper pipe DN 6/10*

*Stainless Steel pipe 1.4301 (US type 304) on request

Integral Leak Rate

Less than 10-5 mbar  l/s
