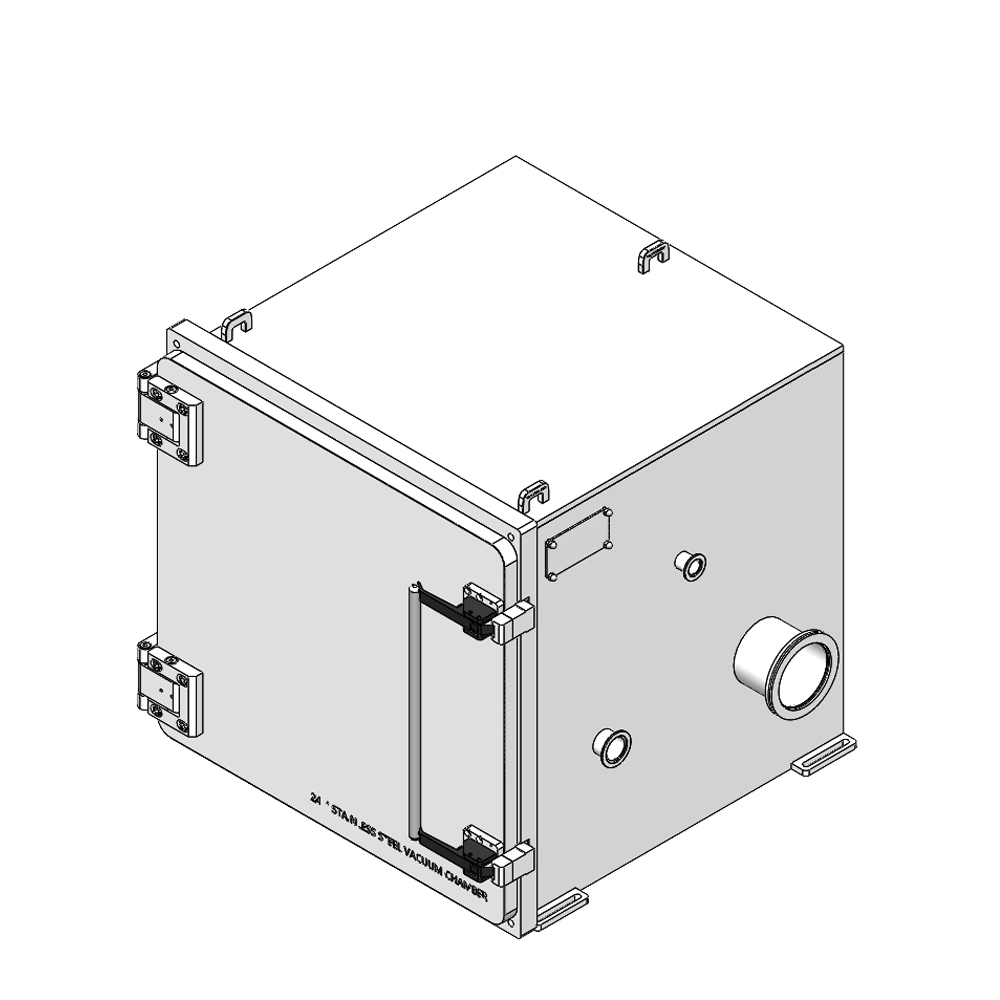

Custom Vacuum Chambers Welded Stainless Steel 24 in, Preconfigured with ISO and KF Flanges, User Selectable Latching Door and Options


$14,600.00 $15,700.00

Compare

Fabricated and assembled entirely in our manufacturing facility, these robust, inexpensive vacuum chambers are a highly efficient way for your R&D lab to get into high vacuum applications. With an internal dimension of at least 24 x 24 x 24 inches, all of these cubic chambers are made with corrosion resistant 304 stainless steel plate . These leak-tested chambers are internally TIG welded, and include an O-ring seal, sturdy hinged door, and easy open latch for quick access. Your choice of door includes an inexpensive aluminum door or a stainless steel door for chemical resistance, and aluminum or stainless steel door with choice of a built-in viewing port. For custom options please call.

Specifications

  • Interior Chamber Size: Approximately 24X24X24 inches (approx. 61X61X61cm)
  • Ports Include: 1x ISO200, 1x ISO100 1x ISO63, 1x KF50, 2x KF40, 2x KF25, 1x KF16
  • Chamber Material: 304 Stainless Steel
  • Hinged Front Door: Stainless Steel
  • Ultimate Pressure: 1×10-6 Torr (High Vacuum)
  • Leak Tested: (Helium) to 1×10-8 atm cc/sec
  • Operating Temperature Range (Viton Seal): 5° to 302°F (-15° to 150°C)
  • Lead Time: One to Two Weeks (7-14 days)
  • Call for additional porting options
  • Call for additional coating options
  • Call for expanded temperature range
